Part Turn Valve Actuator

 Application:

Applicable to Ball Valve, Butterfly Valve and Plug Valve Actuation.

Features:

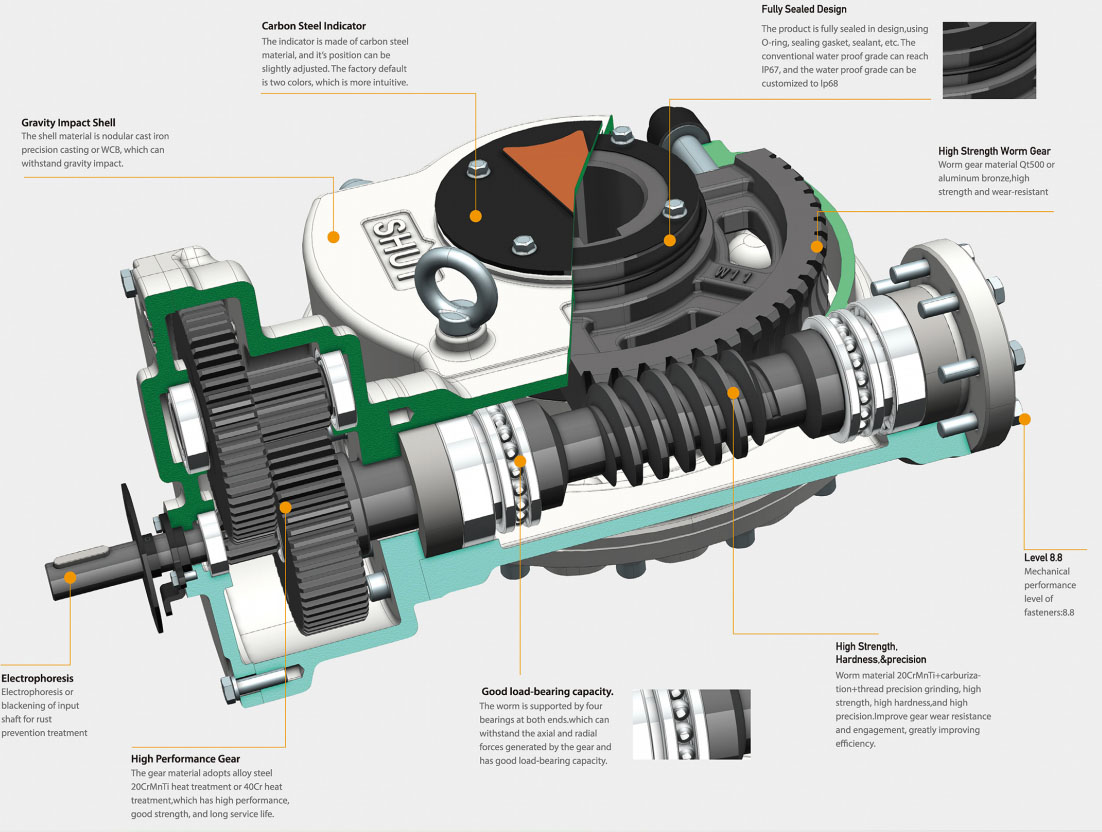

   •Housing and worm wheel material: Ductile Iron

•Complete Models and Ratio Alternatives. Each model matching with different flange standard numbers.

•Flange Connection by ISO 5211

•Fully Enclosed Construction, One Time Grease for Internal Parts,Long Time Performance.

•With Locking Device.

•Stroke: 0-90 degree（ ±5°adjustable）

•Applicable Temperature:-20° C to +120° C

•Enclosure：IP66

•Coupling to Valve: Shaft Key, Flat Hole, Square Head,etc

•The position of the handwheel is on the right by default

•Turn the hand wheel clockwise to close the valve and turn it counterclockwise to open it

Customization

•Enclosure: IP68

•Worm Wheel Material:  Aluminum bronze

•Input Shaft Material: Stainless Steel

•Applicable Temperature: -29°C,-46°C  Or +120°C, 170°C

•The position of the handwheel is on the left.

•Customized Handwheel Diameter.
