Floating Ball Valve  :

（1）Size：NPS 2～NPS 8、DN50～DN200

（2）Pressure：Class150～Class600、PN16～PN64

（3）Material：Carbon Steel, Stainless Steel, Alloy, Duplex Alloy

（4）Actuation：Handwheel. Gear Operator, Electric Operator, Pneumatic Operator

（5）Application: for petroleum, natural gas, petro-chemical industries.

1、Design and Manufacturing：

API 6D、API 608、BS 5351, GOST, GB

            2、Face to Face：

ASME B 16.10, GOST, GB

3、Flange Dimesions：

ASME B 16.5, GOST, GB

4、Inspection and Test：

API 598、API 6D, GOST, GB

5. Main Materials

 A216 WCB、WCC; A217 WC6、WC9、C5、C12、C12A、CA15; A351 CF8、CF8M、CF3、CF3M、CF8C、 A352 LCB、LCC; 20Л,20ГЛ, 12Х18Н9ТЛ, 12Х18Н12М3ТЛ, A105, F304, F316, F321,etc.

6. Features：

    （1）Reliable seat design.

（2）Fire-safe construction

（3）complete sealing and anti-blowout stem.

（4）Anti-static design.

（5）Optional locking device to prevent from wrong operation.

（6）Solid ball.

Main Parts and Materials：

Note:  Alternative materials for valve parts can be provided according to customer’s inquiry.

Trunnion Mounted Ball Valve

   （1）Size：NPS 8～NPS 48、DN150～DN1200

   （2）Pressure：Class150～Class1500、PN16～PN160

（3）Material：Carbon Steel, Stainless Steel, Alloy, Duplex Alloy

  （4）Actuation：Handwheel. Gear Operator, Electric Operator, Pneumatic Operator

  （5）Application: for petroleum, natural gas, petro-chemical industries.

1、Design and Manufacturing：

API 6D、API 608、BS 5351, GOST, GB

        2、Face to Face：

ASME B 16.10, GOST, GB

3、Flange Dimesions：

ASME B 16.5, GOST, GB

4、Inspection and Test：

API 598、API 6D, GOST, GB

5. Main Materials

 A216 WCB、WCC; A217 WC6、WC9、C5、C12、C12A、CA15; A351 CF8、CF8M、CF3、CF3M、CF8C、 A352 LCB、LCC; 20Л,20ГЛ, 12Х18Н9ТЛ, 12Х18Н12М3ТЛ, A105, F304, F316, F321,etc.

6. Features:

    （1）Fire-safe design.

（3）Double Block and Bleed construction.

（4）Anti-static design.

（5）Auto-relief pressure function in case of abnormal pressure rise in cavity.

（6）Double piston effect seat.

（7）Full port suitable for pigging.

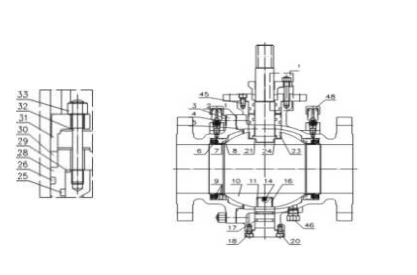

Main Parts and Materials：

Metal Seated Ball Valve

   （1）Size：NPS 4～NPS 20、DN100～DN500

   （2）Pressure：Class150～Class2500、PN16～PN420

（3）Material：Carbon Steel, Stainless Steel, Alloy, Duplex Alloy,etc

  （4）Actuation：Handwheel. Gear Operator, Electric Operator, Pneumatic Operator

  （5）Application: for petroleum, natural gas, petro-chemica, Long Distance Slurry Pipeline, Coal Water Slurry, Multiphase Flow Chemical Plant, industries.

1、Design and Manufacturing：

API 6D、GOST, GB

        2、Face to Face：

ASME B 16.10, GOST, GB

3、Flange Dimesions：

ASME B 16.5, GOST, GB

4、Inspection and Test：

API 598、API 6D, GOST, GB

5. Features:

    （1）Fire-safe design.

（2）Double Block and Bleed construction.

（3）Anti-static design.

（4）With drain valve to release the cavity pressure.

Main Parts and Materials
