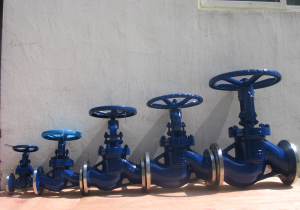

Globe Valve：
（1）Size：NPS1/ 2～NPS 12、DN 15～DN300
（2）Pressure：Class150～Class900、PN16～PN64
（3）Material：Carbon Steel, Stainless Steel, Alloy, Duplex Alloy
（4）Actuation：Handwheel. Gear Operator, Electric Operator, Pneumatic Operator
（5）Application: for petroleum, natural gas, petro-chemical industries.
1. Applicable Standard：
ASME B16.34、API 602, GOST, GB
2. Face to Face：
ASME B 16.10, GOST, GB, etc.
3. Flange Dimensions：
ASME B 16.50,GOST, GB
4. Inspection and Test:
API 598,GOST,GB
5. Main Materials
A216 WCB、WCC; A217 WC6、WC9、C5、C12、C12A、CA15; A351 CF8、CF8M、CF3、CF3M、CF8C、 A352 LCB、LCC; 20Л, 20ГЛ, 12Х18Н9ТЛ, 12Х18Н12М3ТЛ, etc.
6. Features：
（1）With back-seating design.
（2）Forged steel seat, overlay material can be specified by customer..
（3）Integral forged stem design.
（4）ASTM A439 D2 or copper stem nut.
（5）BB body and bonnet construction.

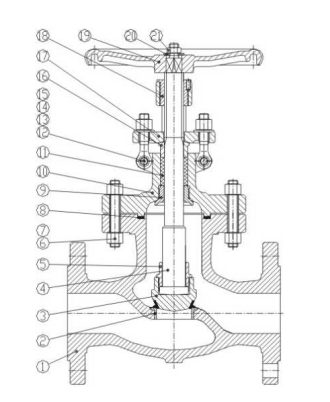

No | Part | Material | ||||
WCB/Trim 1 | WCB/Trim 5 | WCB/Trim 8 | Stainless Steel | Stainless Steel | ||
1 | Body | ASTM A216 WCB | ASTM A351 CF8/ 12Х18Н9ТЛ | ASTM A351 CF8M/ 12Х18Н12М3ТЛ | ||
2 | Seat | A105+13Cr
| A105+STL
| A105+STL
| ASTM A351 CF8+STL/ 12Х18Н9ТЛ+STL | ASTM A351 CF8M+STL/ 12Х18Н12М3ТЛ+STL |
3 | Disc | ASTM A216WCB+13Cr
| ASTM A216WCB+STL | ASTM A216WCB+13Cr
| ASTM A351 CF8+STL/ 12Х18Н9ТЛ+STL | ASTM A351 CF8M+STL/ 12Х18Н12М3ТЛ+STL |
4 | Stem | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F304/F321 | ASTM A182 F316/F321 |
5 | Disc Cap | ASTM A216 WCB | ASTM A216 WCB | ASTM A216 WCB | ASTM A351 CF8 | ASTM A351 CF8M |
6 | Nut | ASTM A194 2H | ASTM A194 2H | ASTM A194 2H | ASTM A194 8 | ASTM A194 8M |
7 | Stud | ASTM A193 B7 | ASTM A193 B7 | ASTM A193 B7 | ASTM A193 B8 | ASTM A193 B8M |
8 | Gasket | 304+flexible graphite | 304+flexible graphite | 304+flexible graphite | 304+flexible graphite | 316+Flexible graphite |
9 | Back-seat | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F6a | ASTM A351 F304 | ASTM A351 F316 |
10 | Bonnet | ASTM A216 WCB | ASTM A216 WCB | ASTM A216 WCB | ASTM A351 CF8 | ASTM A351 CF8M |
11 | Packing | Flexible graphite | Flexible graphite | Flexible graphite | Flexible graphite | Flexible graphite |
12 | Eye bolt | ASTM A193 B7 | ASTM A193 B7 | ASTM A193 B7 | ASTM A193 B8 | ASTM A193 B8M |
13 | Nut | ASTM A194 2H | ASTM A194 2H | ASTM A194 2H | ASTM A194 8 | ASTM A194 8M |
14 | Pin | ASTM A36 | ASTM A36 | ASTM A36 | 304 | 316 |
15 | Split Pin | ASTM A36 | ASTM A36 | ASTM A36 | 304 | 316 |
16 | Gland bushing | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F6a | ASTM A182 F304 | ASTM A351 F316 |
17 | Gland | ASTM A216 WCB | ASTM A216 WCB | ASTM A216 WCB | ASTM A351 CF8 | ASTM A351 CF8M |
18 | Stem Nut | ASTM A439 D2 | ASTM A439 D2 | ASTM A439 D2 | ASTM A439 D2 | ASTM A439 D2 |
19 | Handwheel | Iron | Iron | Iron | Iron | Iron |
20 | Flat washer | ASTM A36 | ASTM A36 | ASTM A36 | 304 | 316 |
21 | Nut | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel |
Note: Alternative materials for valve parts can be provided according to customer’s inquiry.
